Outdoor module series

产品概述产品参数

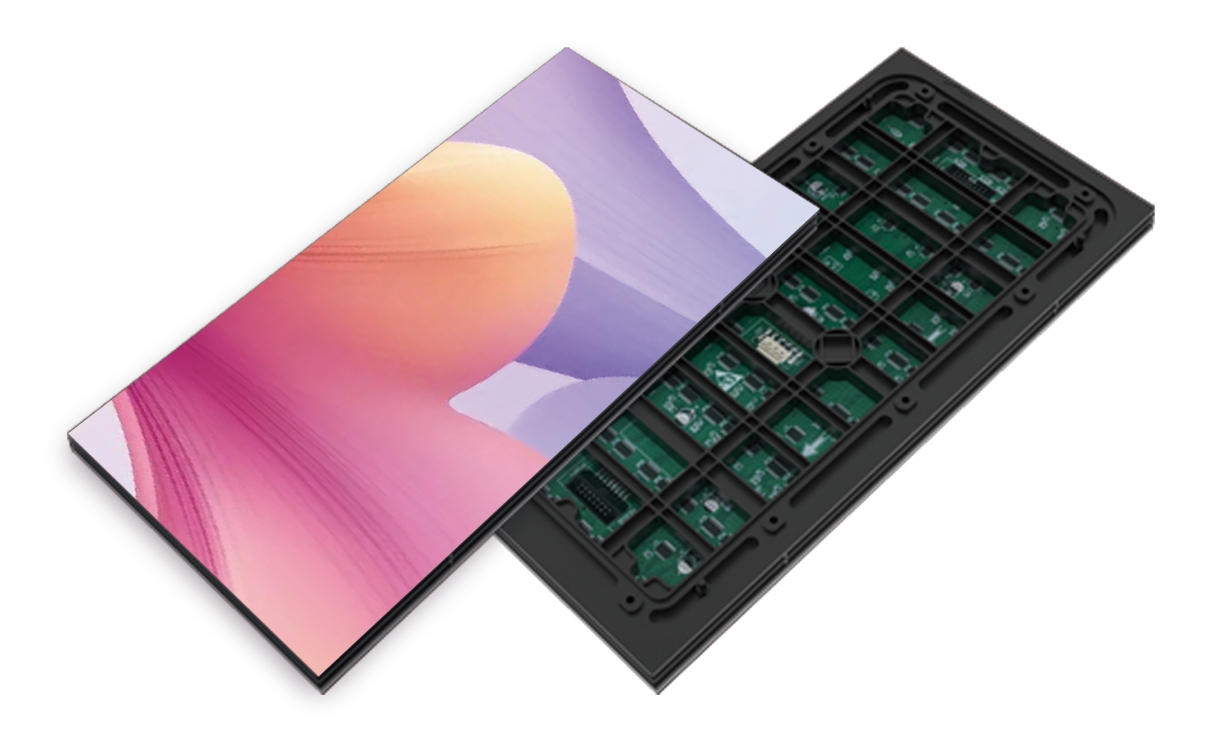

Outdoor module series

LED TRANSPARENT SCREEN SERIES

Concave and convex bending

A single box can achieve simultaneous concave and convex bending.

Extremely thin and otherworldly

A single box weighs 7kg and is only 94.5mm thick.
Arc function

Support any adjustment and splicing of internal and external arcs, the maximum Angle of the whole box is ±30°.
Cylindrical splicing

12 boxes can achieve cylindrical splicing, with a diameter of about 1.9 meters.
Wavy function

Angle support ± 30°, ± 25°, ± 20°, ± 15°, ± 10°, ±5°, 0°.

High definition
Super protection
Super light and thin
High Refresh
Convenient maintenance
170° ultra wide viewing Angle

Product parameter

Product model	Point spacing (mm)	Module Size (mm)	Refresh rate (Hz)
DLX2.5W	2.5	320x160	≥3840
DLX3.076W	3.076	320x160	≥3840
DLX4W	4	256x128	1920/3840（可选）
DLX4EW	4	320x160	1920/3840（可选）
DLX5W	5	320x160	1920/3840（可选）
DLX6W	6	192x192	1920/3840（可选）
DLX8W	8	256x128/320x160	1920/3840（可选）
DLX10W	10	320x160	1920/3840（可选）

产品型号

DLX-TBFN-16H2.5

DLX4FI

DLX2.5-5.0G

DLX4DI

色温K

2.5

3000-15000可调3

2.5-5

3000-15000可调
水平视角(°)

1602

1603

SMD1415/1515

160
垂直视角(°)

1402

1403

条宽20.5mm

140
发光点中心距偏差

<3%

<3%

1000x500x32

<3%
亮度均匀性

≥97%

≥97%

7.5

≥97%
对比度

5000:1

5000:1

IP 31

5000:1
换帧频率(Hz)

50/60

50/60

160

50/60
刷新率(Hz)

1920/3840(可选)

1920/3840(可选)

160

1920/3840(可选)

完整版资料下载
